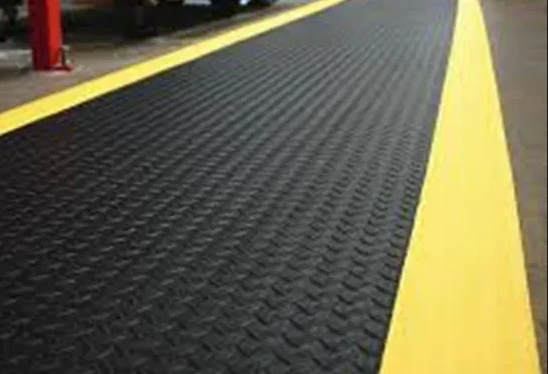

An anti-static sheet with warning edge is a specialized ESD (Electrostatic Discharge) protective surface material engineered for environments where static electricity poses a risk to electronic components, pharmaceuticals, or sensitive manufacturing processes. The distinguishing feature - a colored warning edge (typically yellow, blue, or red) - serves as a continuous visual indicator that defines the boundaries of an ESD-protected area (EPA).
Unlike standard anti-static mats, the warning edge provides an immediate, at-a-glance verification that workers and equipment are operating within a compliant static-safe zone. This visual cue is not just a convenience - it is a requirement under multiple international ESD standards, including IEC 61340-5-1 and ANSI/ESD S20.20.
In high-volume manufacturing environments, operators move quickly between workstations. The warning edge functions as a passive safety mechanism:
- Visual perimeter definition - workers can instantly confirm they are within the protected zone
- Compliance auditing - quality inspectors can verify EPA boundaries without measurement tools
- Accident prevention - the contrasting color draws attention to the transition between ESD-safe and non-ESD areas
- Standardization - meets the color-coding requirements specified in ESD association standards

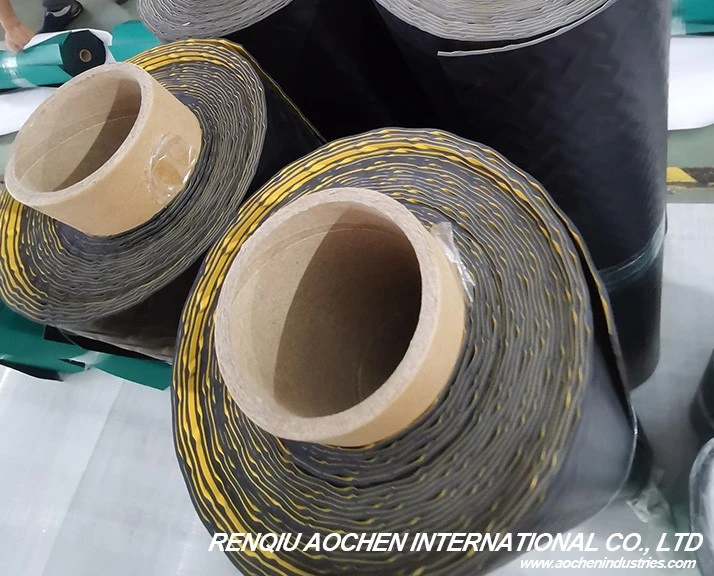

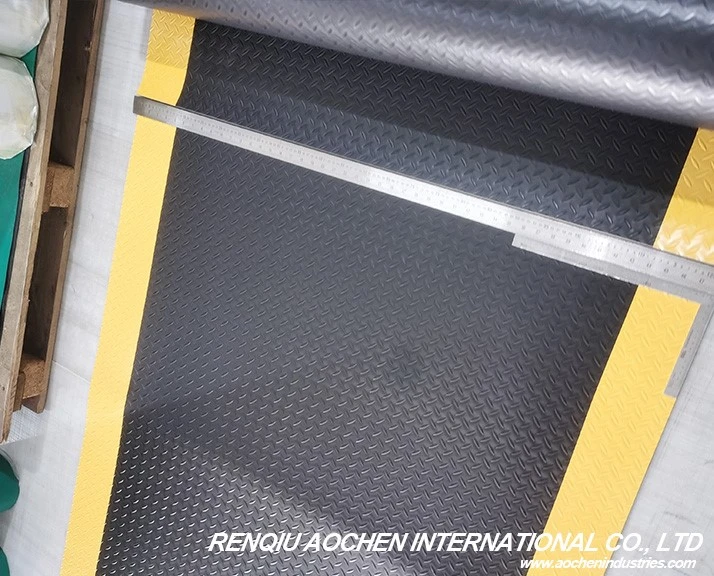

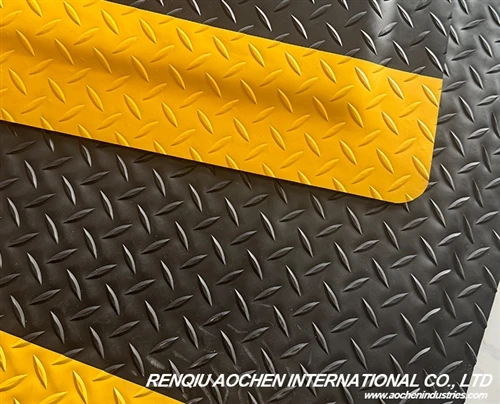

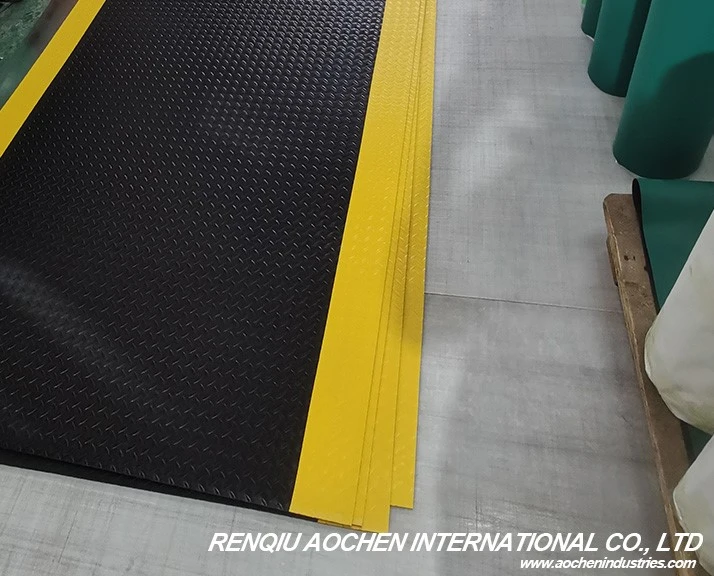

Anti-Static Sheet With Warning Edge Product Code ACP10002-2 Material Anti-static PVC material Color Black with yellow edge, gray Pattern Willow Packing Woven bag Product Size Length Width Thickness Weight 10m 900mm 3mm
1. Surface Resistance
| Property | Typical Range |
| Surface resistance (top layer) | 10⁶ – 10⁹ ohms |
| Volume resistance | 10⁵ – 10⁸ ohms |
| Charge decay time | < 2 seconds |
Why it matters: A surface resistance below 10⁶ ohms risks generating currents that can damage sensitive components. Above 10⁹ ohms, the sheet loses its ability to dissipate static charges effectively. The static dissipative range (10⁶ – 10⁹ ohms) is the industry-accepted sweet spot.

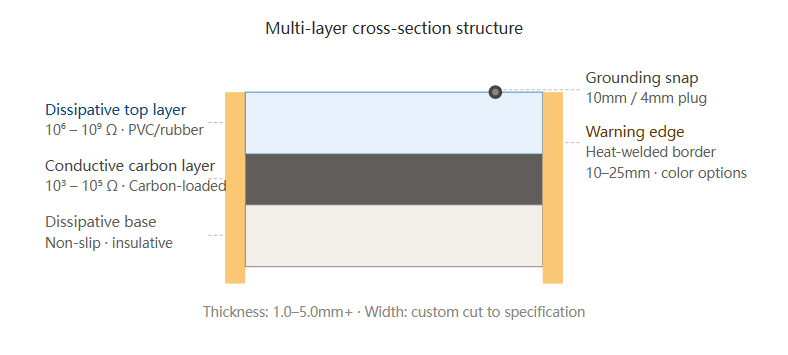

2. Material Construction
Most quality anti-static sheets use a multi-layer construction:
- Top layer (dissipative): Typically a PVC or rubber compound with carbon or amine-based anti-static additives. Provides the ESD-safe working surface.
- Middle layer (conductive): A carbon-loaded black layer that channels static charges to the grounding point. Resistance typically 10³ – 10⁵ ohms.
- Bottom layer (dissipative/insulative): A non-slip base that prevents current from leaking into the workbench or floor.
B2B Tip: Single-layer anti-static sheets are cheaper but degrade faster. For continuous-use environments (24/7 production lines), always specify multi-layer construction.

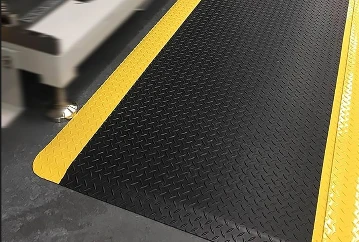

Anti-Static Sheet with Warning Edge
Anti-static sheets with warning edges are deployed across industries where electrostatic discharge can cause catastrophic failures:
Electronics & Semiconductor Manufacturing
The primary application. A single ESD event as small as 100 volts can damage microprocessors, memory chips, and semiconductor wafers.
Pharmaceutical & Biotechnology
Static charges attract particulate contamination and can disrupt precision weighing and dispensing.
Automotive Electronics
Modern vehicles contain 50+ ECUs (Electronic Control Units).
Aerospace & Defense
Military and aerospace electronics require the highest ESD protection standards (often MIL-STD-1686).
Medical Device Manufacturing
FDA-regulated environments use anti-static surfaces during: PCB population for medical imaging equipment, Implantable electronics assembly, Diagnostic device calibration.
Samples A sample lets you test resistance, durability, chemical resistance, and warning edge quality before committing to a bulk order.
📩 Contact us now for a tailored quotation - our engineering team will respond within 24 hours with pricing, technical specifications, and sample options. Get the ESD protection your production line deserves.
