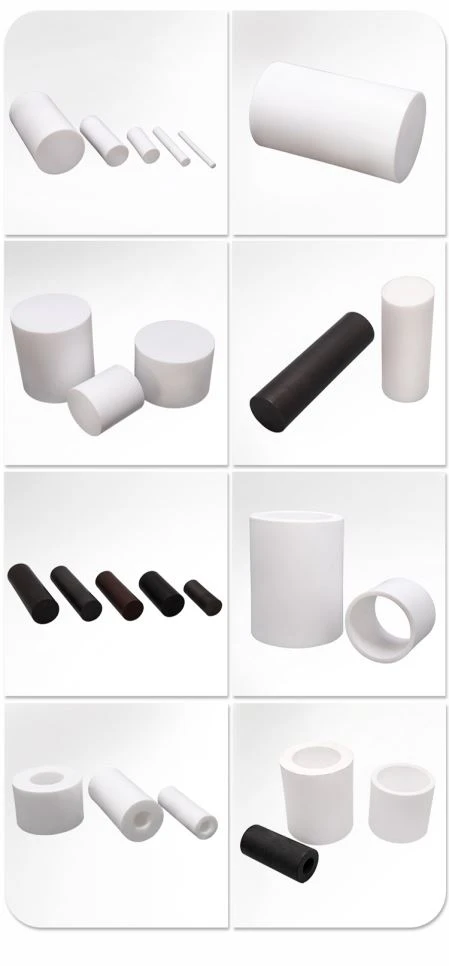

PTFE Rod

Product Name

Polytetrafluoroethylene rod

End-use Temperature

-180~+260℃

Corrosion Resistance

Resistance to strong acid and alkali, water and various organic solvents

Shore Hardness

D50~55

Insulativity

Very good, with a dielectric strength of 10KV / mm

Water Absorption

<0.03

Self-lubrication

The friction coefficient is 0.04, which is smaller in the plastic

Tensile Strength

21~28MPA

Also includes non-contamination, non-toxic, non-combustible, oxidation resistance, atmospheric aging resistance and other characteristics.

Product Technical Parameters

① Moulded rod :

Length: 100,150,200mm

Diameter: φ8,10,12,15,16,18, 20, 22,25,30,35,40,45,

50,55,60,65, 70,75,80, 85,90,95,100, 110, 120,

130,140, 150, 160, 170, 180, 190, 200, 220,230,

250,260,280,300, 320,350,400, 500mm

②Squeeze the stick:

Length:1m

Diameter:φ5,6,8,10,12,13,14, 15, 16,18,20,22,25, 28,

30,35,40,45,50, 55,60,65, 70,75,80,85. 90,95,

100,110, 120, 130, 140, 150mm
